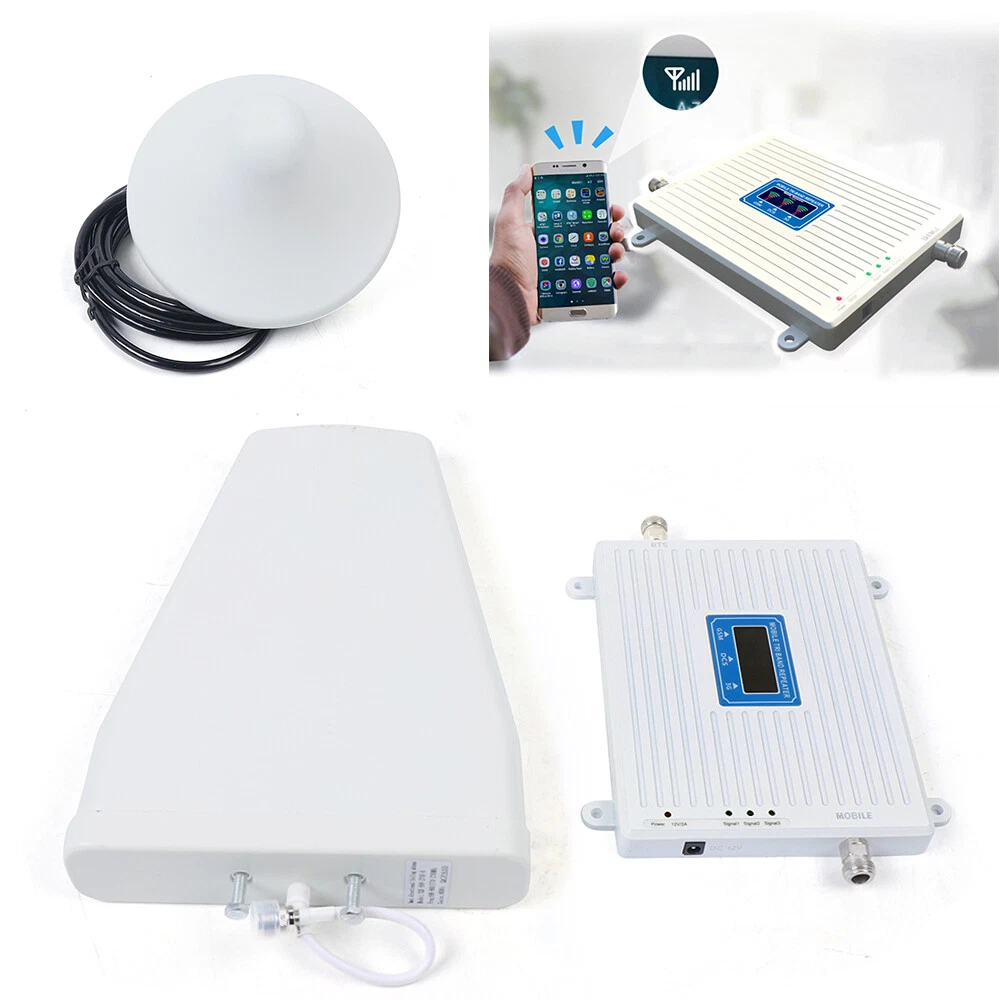

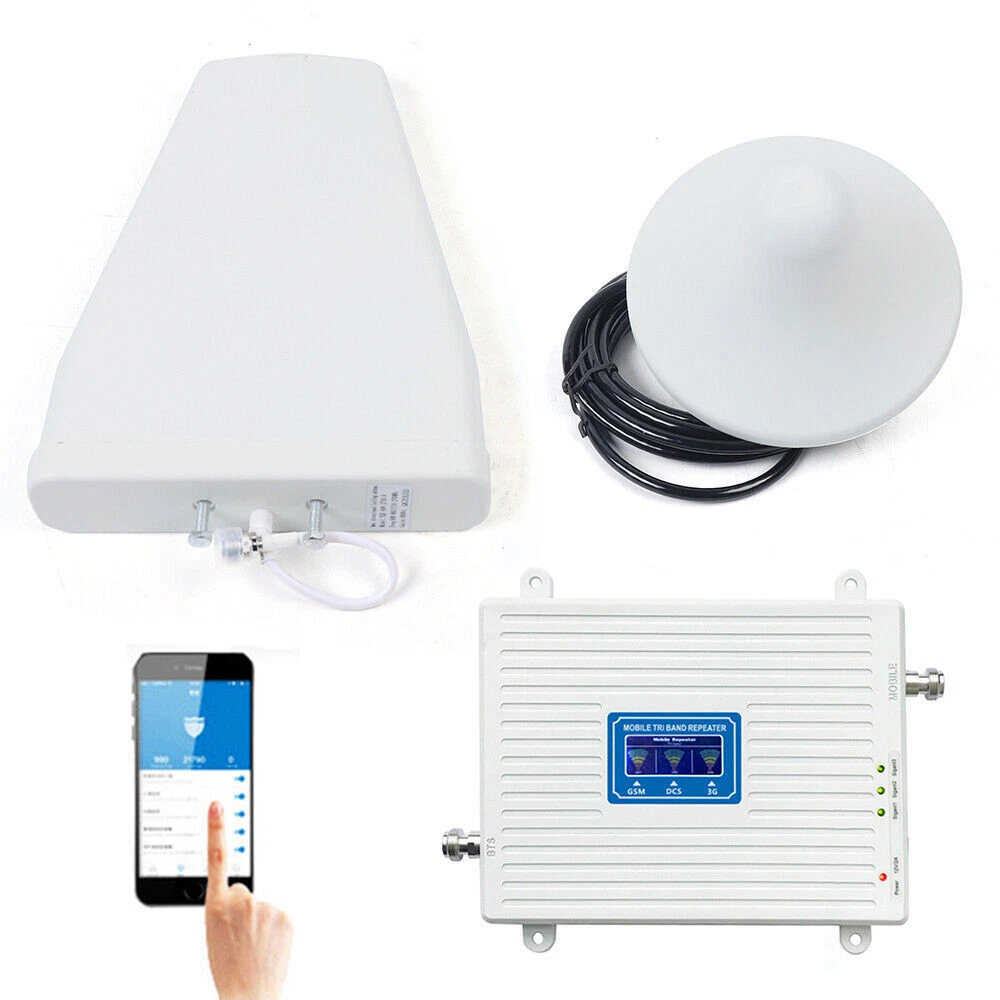

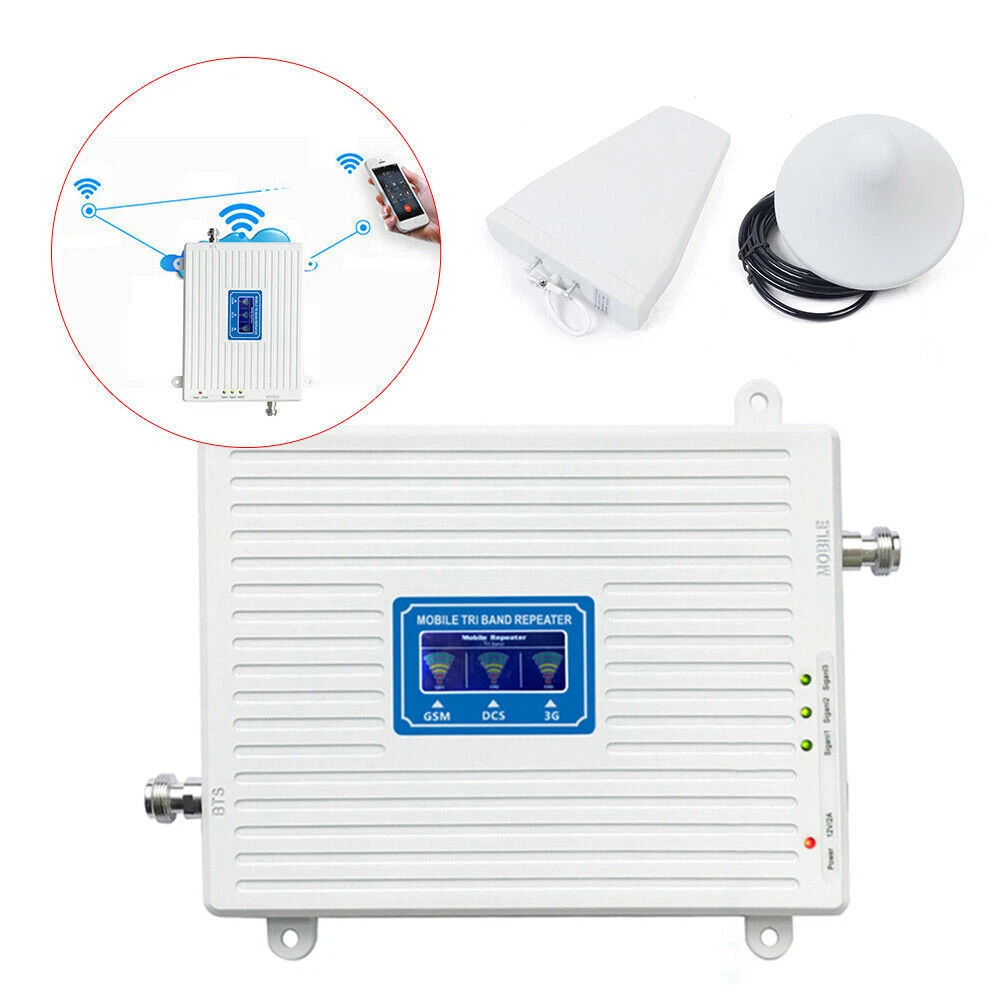

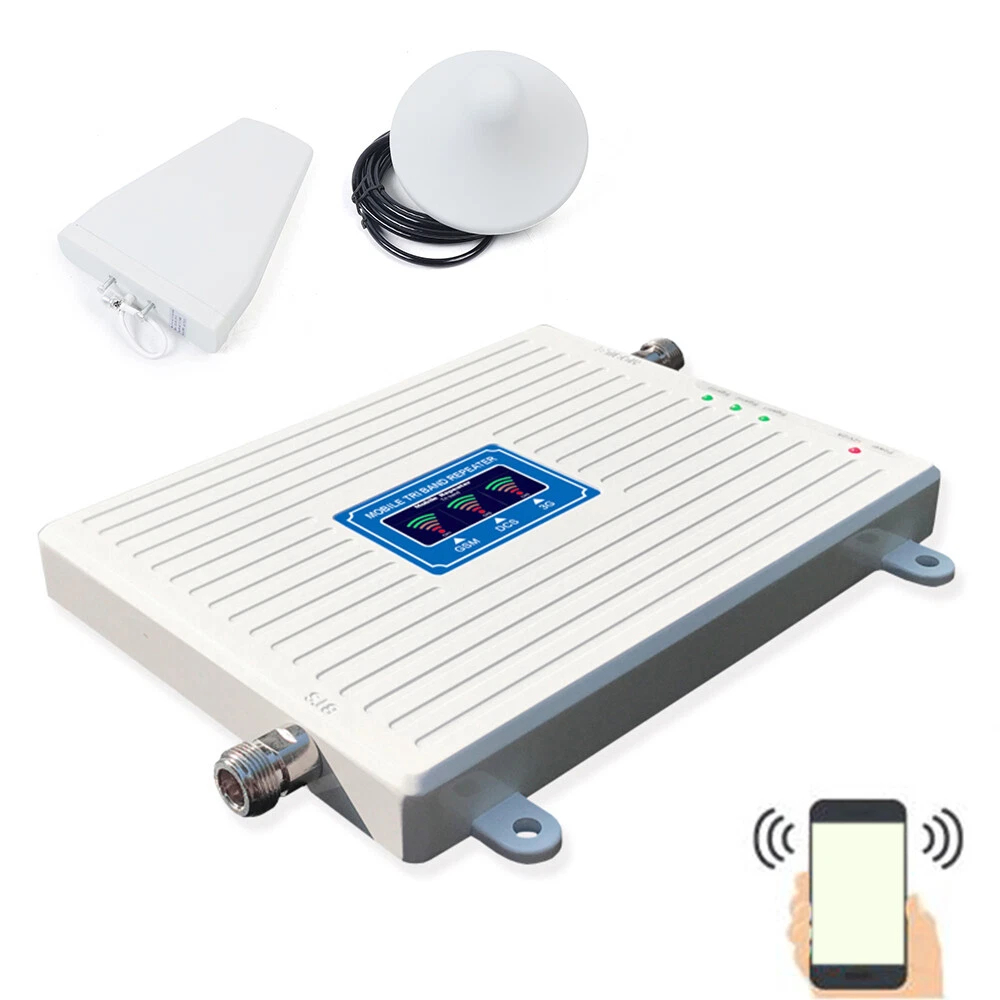

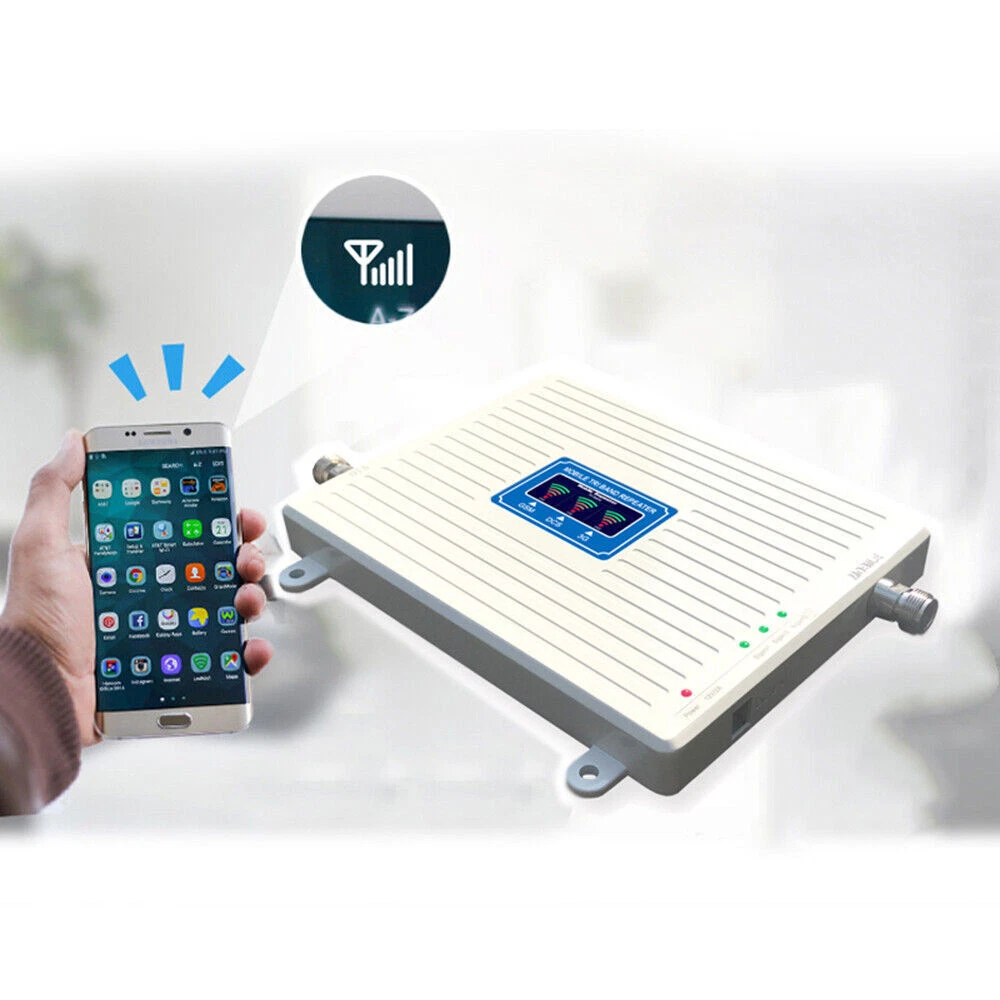

Signal Amplifier

Specification:

Host Size：235mm*185mm*20mm（9.25*7.28*0.79 in）

Outdoor Antenna Size：305mm*210mm*50mm（12*8.27*1.97in）

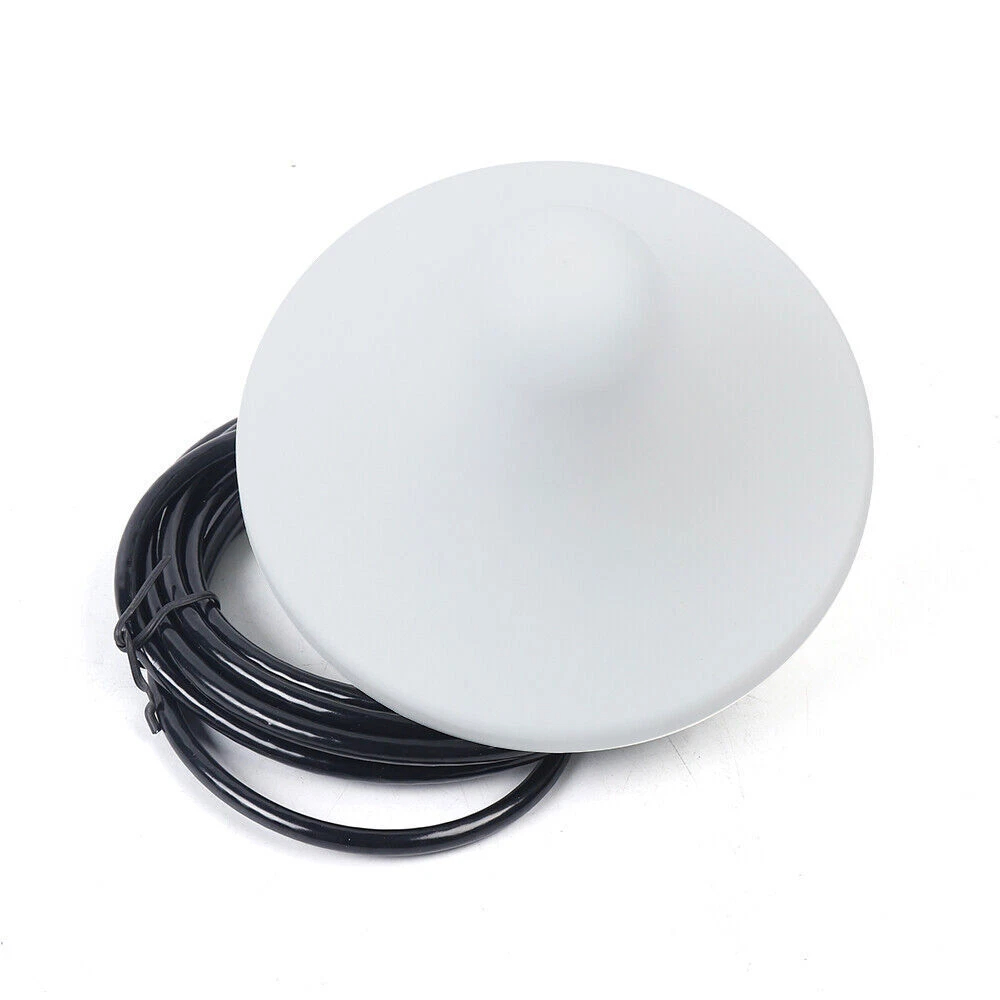

3m Ceiling Antenna Size：170mm*140mm（Diameter*Height）（6.69*5.51in）

Weight：2.7kg（5.95lb）

Power: -70 ~-40 Dbm/ Fa (1.23mhz)

Signal Coverage : up to Cover for 150 Square Meters Use

Impedance : 50ω

Seclusion : >65db

Power Supply : Ac110v

Output Voltage: 5v

Compact Design: Indoor Use

Frequency Range :

890mhz--915mhz(up Link)
1710-1785mhz(up Link)
920-1990mhz(up Link)
935-915mhz(down Link)

1805-1880mhz(down Link)
2110-2180mhz(down Link)

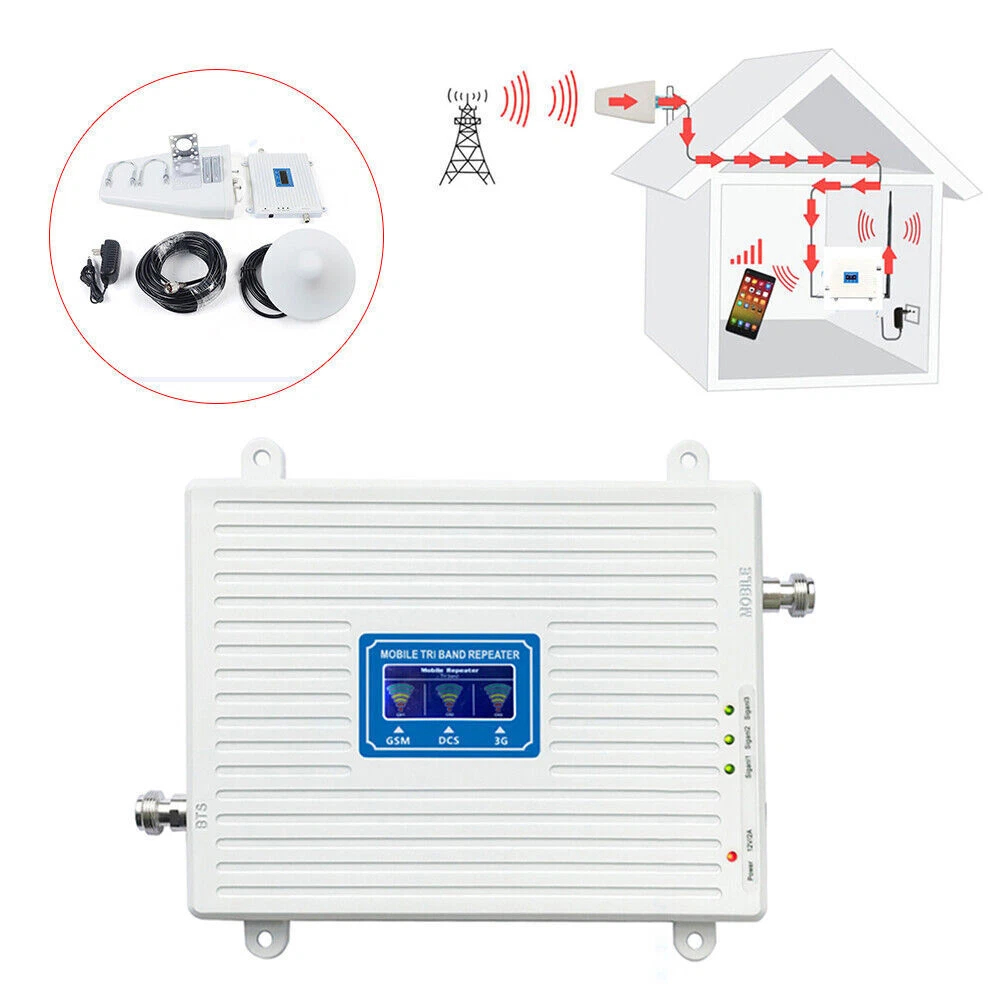

Installation Approaches

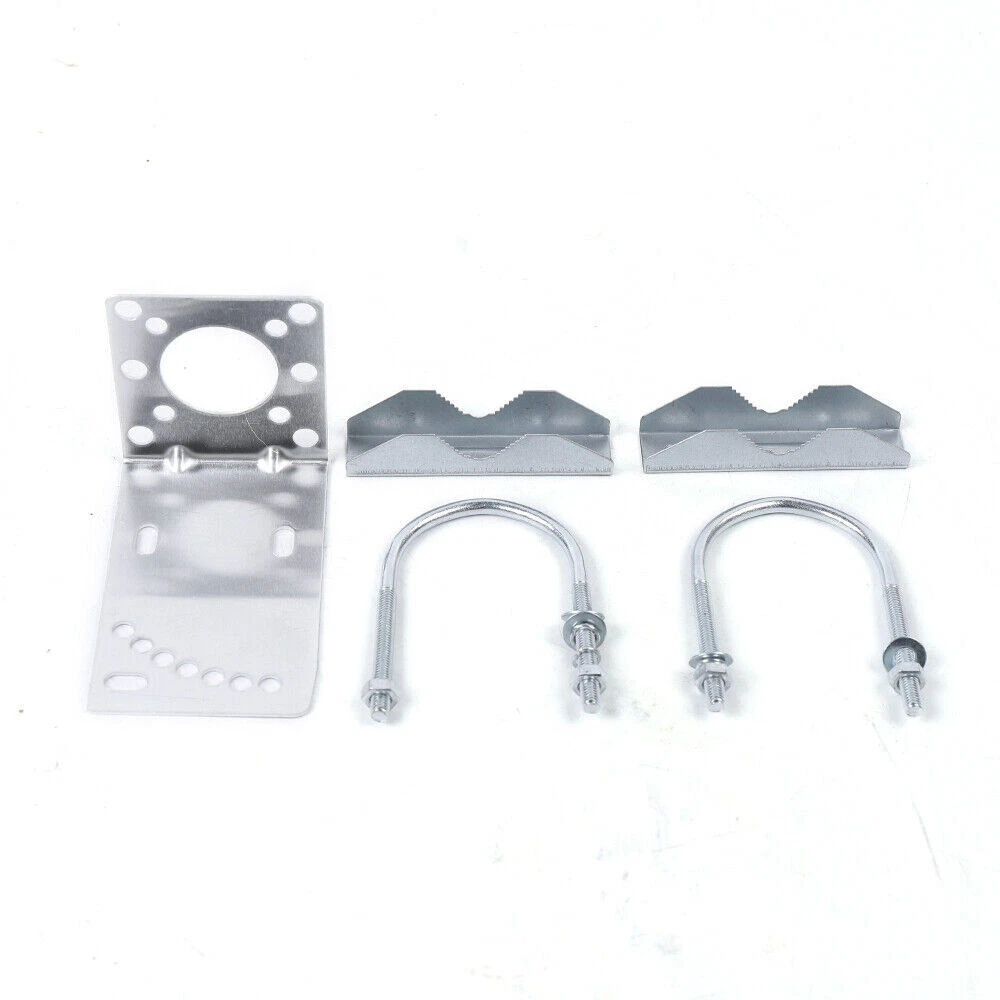

1. Fix up Outdoor Antenna Reception on Housetop and Point to Signal Tower.

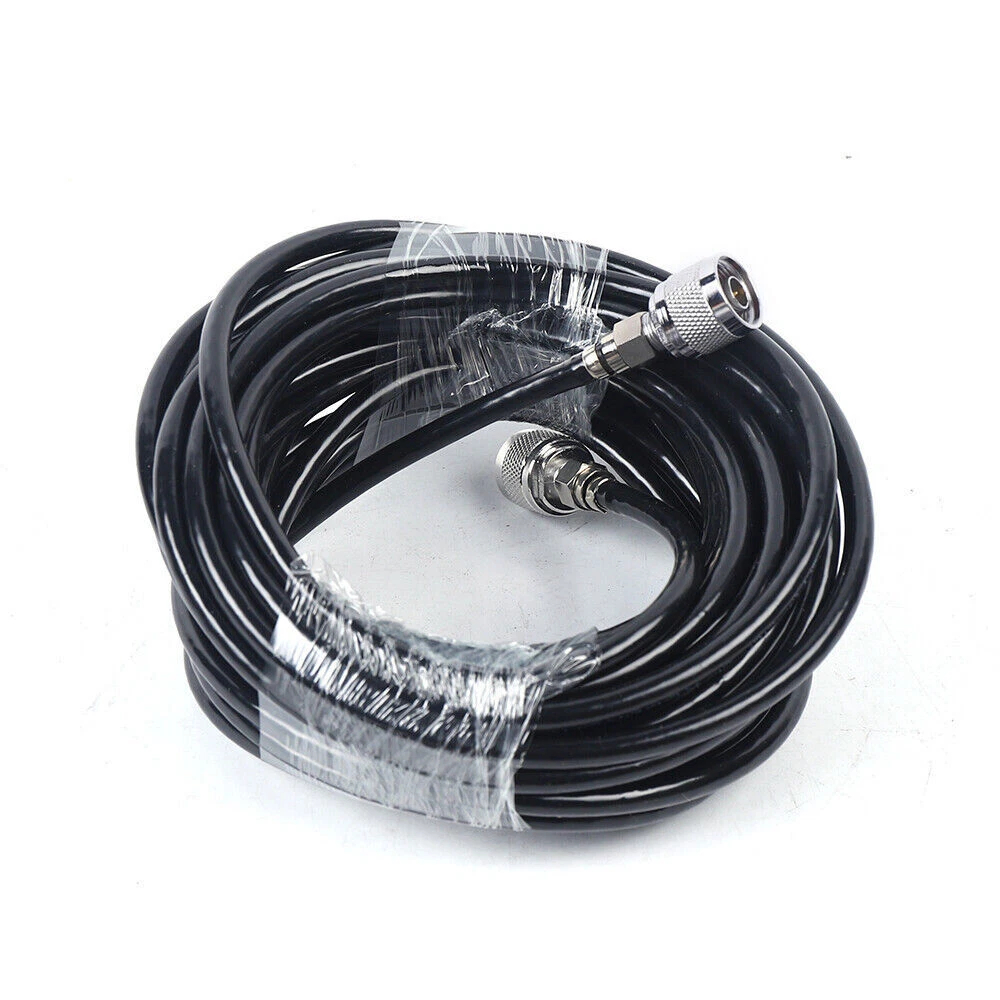

2. Connect Outdoor Antenna to "Bts" Port in Repeater Machine Through Cable.

3. Connect Indoor Antenna(S) to "Mobile" Port in Repeater Machine Through Cable Also.

4. Plug Power Adaptor into Ac Power Socket and Finish Installation.

Installation Note:

1. Please Make Sure Distance Above 10m Between Indoor and Outdoor Antenna, It’s Better Divides One from Another by a Wall.

2. Please Try to Choose a Good Signal Place to Set up Outdoor Antenna.

3. Please Sure That There Are Good Signal 4-5 Bars on Your Outdoor, or It Will Not Work on Your Room.
